SOLAR PANEL 80w POLY
SKU: SOL000B·Solar Panel

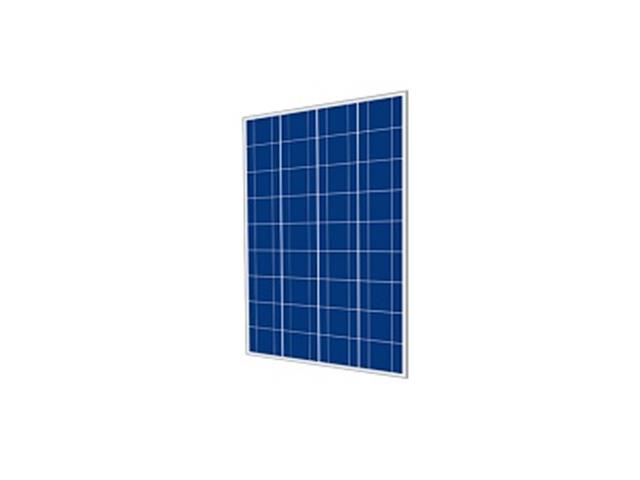

80W polycrystalline solar panel (Cinco).
No online prices. We come back with a sharp quote, fast.
Generic SOL000B description
This Cinco 80W polycrystalline solar panel powers remote gate motors, fence energizers and monitoring equipment where mains power is absent or unreliable. It delivers 4.45A at 18V working voltage (21.8V open circuit, 4.76A short circuit) into a charge controller and battery, in a 760 x 680 x 30mm frame weighing 8kg. Sized to keep a typical gate motor or energizer battery charged through SA sun.
Generic SOL000B specifications
- Type
- Polycrystalline solar panel
- Power
- 80W
- Working voltage
- 18V
- Output current
- 4.45A
- Open circuit voltage
- 21.8V
- Short circuit current
- 4.76A
- Size
- 760 x 680 x 30mm
- Weight
- 8kg
